Electric pedestrian stacker 1.2 - 3.0t

2500 - 6000 mm
1200 - 3000 kg

Lifting heights up to 6 m and high residual capacities.
Optional electric tiller steering for fatigue-free operation.
Proportional hydraulics for accurate lifting and lowering.
Long safety tiller and optimised view of the forks.

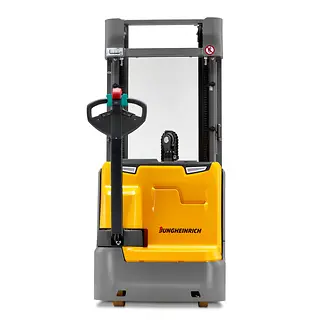

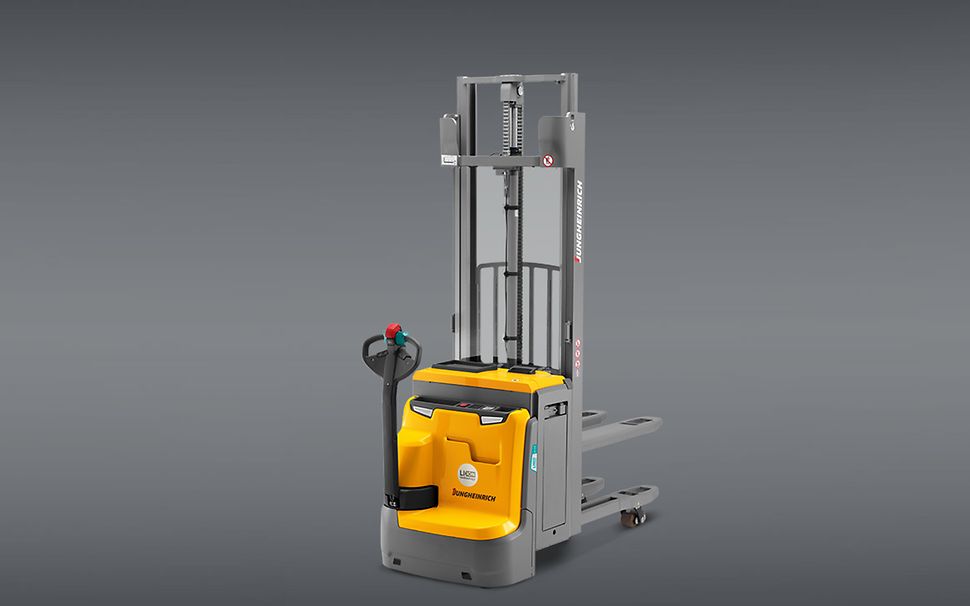

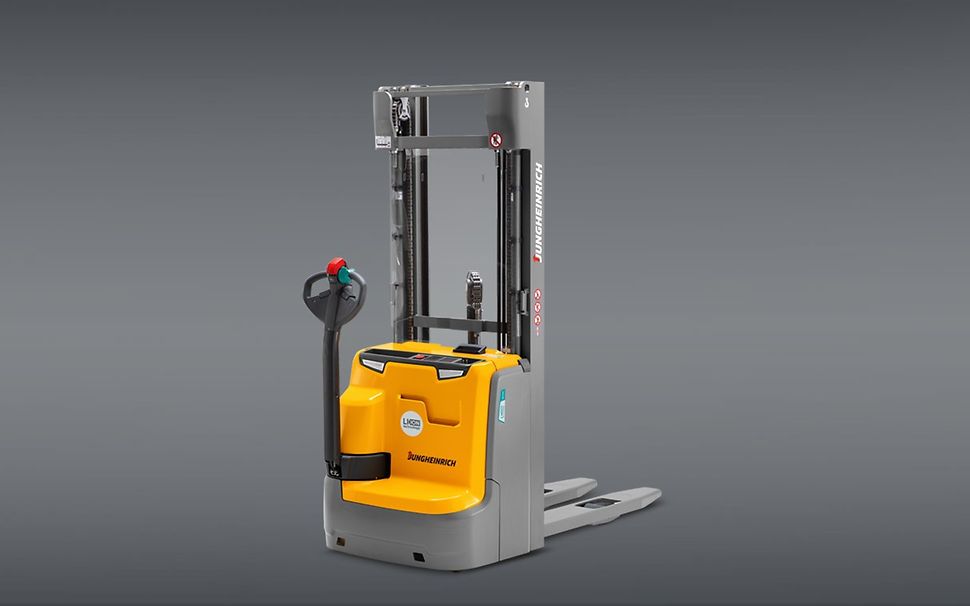

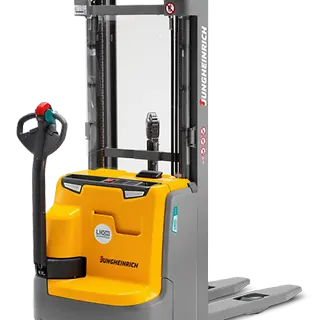

EJC 212 - 230

With their great lift height and a high residual capacity, the powerful and robust EJC Series 2 trucks are perfectly suited for intensive applications and for the stacking and removal of heavy cargo at great heights. Our assistance systems also guarantee safe and efficient load handling: operationCONTROL warns the operator when the residual capacity is exceeded, while positionCONTROL enables the selection of a predefined lifting height. Due to the perfect coordination of control and our low-maintenance and powerful 3-phase AC drive motors, the energy consumption of these robust trucks remains surprisingly low. The lift motor also convinces with its strong performance and is quiet, while allowing particularly gentle and precise stacking.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Intelligent drive and steering technology

Greater performance while simultaneously reducing operating costs using 3-phase AC motors perfectly tuned to the in-house developed controller.
High efficiency levels with excellent energy management.
Powerful acceleration and rapid direction change.
Roll-back protection on gradients.
Maintenance-free drive motor without carbon brushes.

Long operating period

Long service life with battery capacities up to 375 Ah.

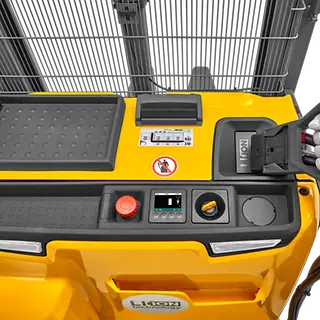

Built-in charger (optional) for easy charging at any standard 230-V socket (depending on battery type up to max. 270 Ah also available with rapid charging function for charging during a shift).

Lithium-Ionen-Technology

High availability thanks to extremely short charging times.
No battery exchange required.
Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation required as there is no build-up of gas.

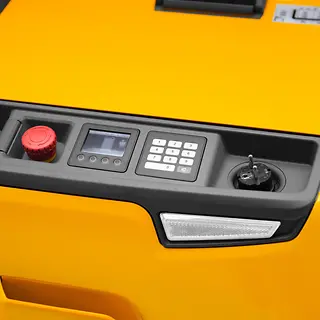

Always informed

2-inch display including load display (optional) as central display and adjustment instrument.
Battery charge status, number of operating hours and event messages.
Choice of three travel programs.
Activation of the truck by key switch or by EasyAccess via softkey, PIN code or optional transponder card.

Safe stacking and retrieval

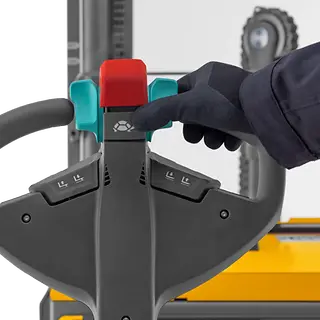

Intuitive control of all lifting and lowering functions with the multifunctional tiller arm.
Precise and gentle lifting of the load with the speed-controlled and noise-reduced hydraulic motor.
Gentle depositing of loads using proportional hydraulics.
Automatic reduction of travel speed with raised load.
Four-wheel concept for high stability.

Service-friendly design

Drive motor panel is easy to open with only 2 screws.
Service access ports on front apron.
Support wheel with bayonet mechanism for simple wheel replacement with only slightly raised truck.
Tiller electronics sealed completely against moisture and dirt as per IP 65.

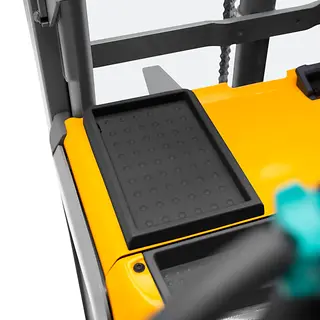

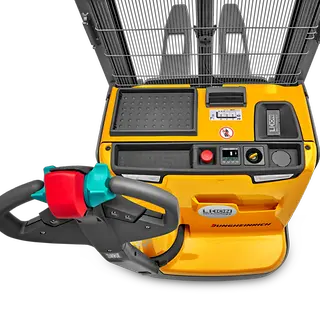

Practical storage compartments

Document holder in the front cover.
Storage compartments in the dashboard panel.
Pencil and clip pad.

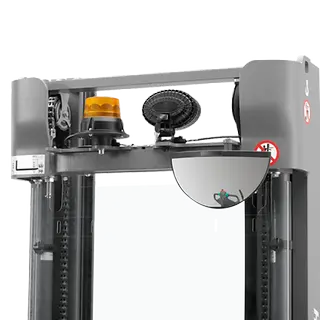

Additional equipment

6-inch additional display (optional) for assistance systems.
Twin roller support wheel to reduce wear.

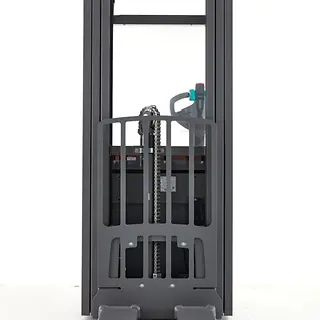

Load guard available in different heights.
Cold store version.

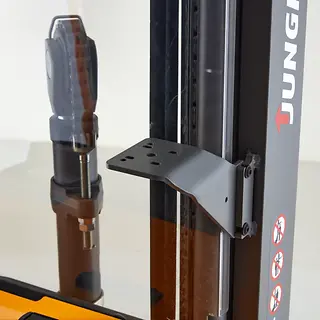

Connection option e.g. for terminal, scanner or printer.





Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EJC 212	1 200 kg	6 000 mm	6 km/h	1 827 mm	24 V
EJC 214	1 400 kg	6 000 mm	6 km/h	1 916 mm	24 V
EJC 216	1 600 kg	6 000 mm	6 km/h	1 916 mm	24 V
EJC 220	2 000 kg	6 000 mm	6 km/h	1 988 mm	24 V
EJC 230	3 000 kg	6 000 mm	5,5 km/h	2 180 mm	24 V

Downloads

EJC-2-2019_Factsheet_EN-AU_2024-12.pdf pdf (1,5 MB)

Technical data EJC 2 pdf (1,5 MB)

Product advantages EJC 230 pdf (3,3 MB)
