Electric pedestrian pallet truck 2.0 - 2.2t

1500 - 2905 mm
2000 - 2200 kg

Multifunctional double-decker truck.
Flexible storage and retrieval up to a height of 2,905 mm.
Greatest lift height variance in three mast types.
Available with lithium-ion technology.
Versatile assistance systems for maximum safety.

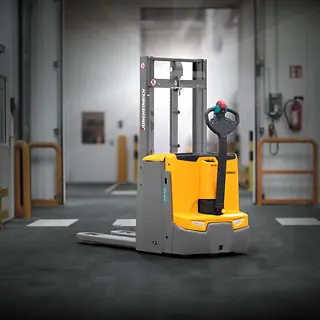

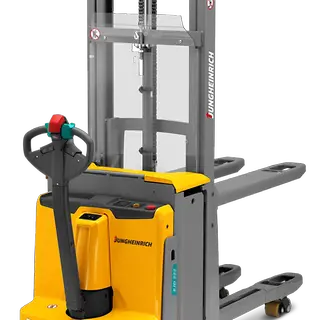

EJD 120/ 222

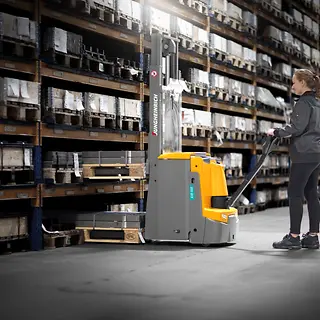

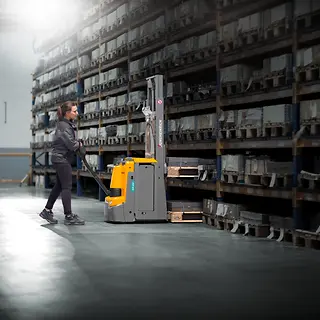

The versatile and compact EJD electric stacker truck is the perfect choice for the double-decker transport of goods on ramps and uneven floors, as well as stacking and retrieval at heights of up to 2,905 mm. This efficient truck combines stable handling with maximum manoeuvrability, even in confined warehouse conditions. By picking up two pallets at a time, the EJD works twice as fast as conventional trucks. Maximum occupational safety is ensured by intelligent assistance systems, a long safety tiller with 4-level foot protection, reflectors and optimum view of the fork tip. The modern 3-phase AC motor convinces with impressive endurance, high performance and optimum energy efficiency. A flexible choice of three travel programs and standard, sensitive proportional hydraulics for controlled lifting and lowering make comfortable working possible.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Intelligent control and advanced drive technology

A modern 3-phase AC drive motor for greater performance with reduced operating costs.
ECO drive mode for lower energy consumption at constant travel speed.
Roll-back protection on gradients.
Maintenance-free drive motor without carbon brushes.

Long operating times with lead-acid battery

Long service life with high battery capacities up to 375 Ah.
S battery compartment with 150 Ah (EJD 120), M with 250 Ah or L with 375 Ah (EJD 222).

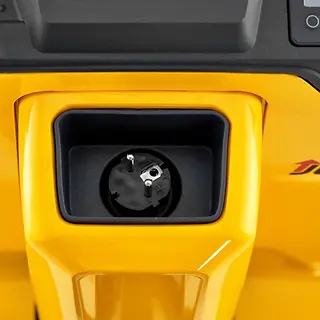

Optional built-in charger for wet cell batteries and maintenance-free batteries for easy charging at any 230-V mains socket.
Time-saving and ergonomic battery replacement with lateral battery exchange in compartment M and L.

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange required.
Cost savings due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation required as there is no build-up of gas.
Optional built-in charger for lithium-ion batteries allows for easy charging at any 230-V mains socket.

Robust design

Enclosed frame contours.
Up to 7-mm steel frame for high throughput applications.

Easy stacking and retrieval

Pallet stop on the frame for quick and precise positioning of 2 stacked pallets.

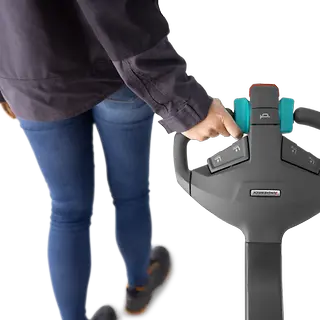

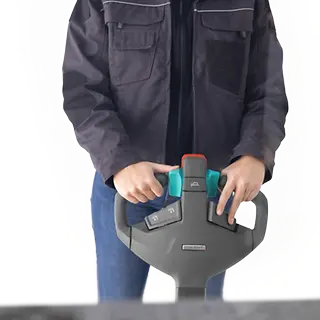

Intuitive control of all lifting and lowering functions with the multifunctional tiller arm.
Precise and gentle lifting and lowering of the load by speed-controlled hydraulic motor.
Lateral touch mode for lifting and lowering the forks when order picking.

Comfortable and safe operation

Flexible selection of three travel programs.
Optional integrated spotlights for better visibility in poorly lit areas.

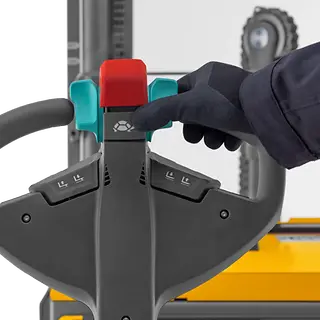

4-stage safety tiller for active foot protection.

Always informed

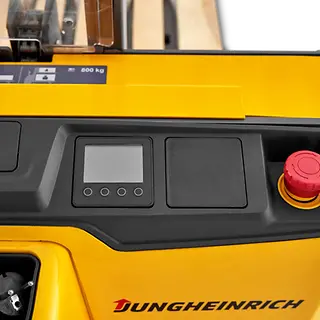

Optional 2-inch additional display for assistance systems incl. good visibility when stacking.
Battery charge status, number of operating hours and event messages.
Optional activation of the truck by EasyAccess via soft key, PIN code or transponder card.

Versatile with support arm lift

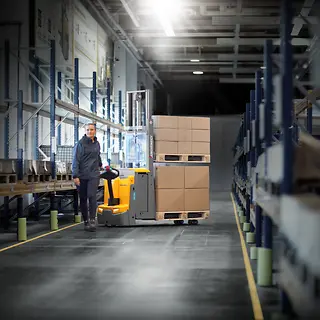

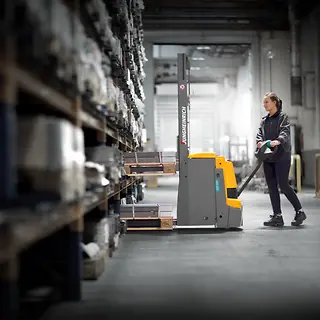

Double-decker transport of two pallets simultaneously.
An additional lifting mechanism raises the support arms independently of the forks.

Flexibility in pedestrian mode

A wide range of masts in various designs offer individualisation (EF = single mast, ZT = duplex telescopic mast, DT = triplex telescopic mast).
Driving the truck at the ergonomic speed of 5.6 km/h allows for comfortable and safe manoeuvring.
Travel program 3 allows for individual adjustment to a maximum speed of 6 km/h.
Spotlight for optimal illumination.

Additional features

Cold store version.
Load guard in two heights.
Option mount on the battery lid.
Robust, universally applicable option bracket.
Spotlight for HGV illumination.
Shrink wrap holder.
A4 writing pad.
Magnetic storage compartment.









Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EJD 120	2 000 kg	1 660 mm	6 km/h	1 847 mm	24 V
EJD 222	2 200 kg	2 905 mm	6 km/h	2 046 mm	24 V
