Electric pedestrian stacker 2t

1660 - 3760 mm
2000 kg

Most compact truck in its class.
Spacious stand-on platform with stable three-sided protection.
Specially designed for demanding HGV use.
Best performance values on the market.
Flexible mast which reaches to the 3rd racking level.

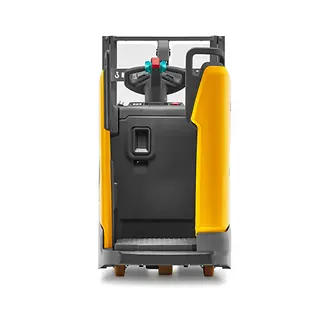

ERD 220i

The ERDi is an innovation that fulfils many requirements in just one industrial truck. A double-decker truck which combines ultra-compact dimensions with maximum three-sided protection and a spacious stand-on platform. Where there previously was a large and heavy battery tray, the compact lithium-ion battery modules now blend elegantly into the truck design. A pioneering concept for which Jungheinrich has received several awards. A particular highlight is the detection of the HGV's surroundings: the truck brakes automatically, making intensive ramp travel much easier on the back. In poorly lit HGV interiors, the spotlight comes on automatically, making it easier to pick up pallets. When there is a lot of activity in the transshipment warehouse, the ERDi with its ultra-compact dimensions takes up very little space, while at the same time it keeps operators safely protected. The ERDi can pick up two pallets stacked one on top of the other, reaching racking heights of up to 3,760 mm thanks to its triplex mast – greater performance is impossible.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Features

Three-sided protection

Fixed side walls in solid steel protect the operators on three sides.
Spacious stand-on platform so that operators always remain within the truck contours. Minimised accident risk.
Optional: foot protection sensor for reducing speed as soon as a foot protrudes above the stand-on platform.
Optional overhead guard for protection from falling loads. (Required from lift height > 1,800 mm)

In the HGV

Smooth, back-friendly ramp travel thanks to automatic reduction of the travel speed.
Optimum visibility due to automatic switching on of the working light. For fast and safe picking up of pallets without blinding the operator.

Load handling (operationCONTROL)

Multifunctional colour display clearly shows lift height, load weight and residual carrying height (optional).
Triple warning of overloading: acoustic, sensory, visual (optional).

Passive safety

Integrated Floor-Spot announces approaching ERDi. Prevention of collisions with people and trucks.

Platform variants

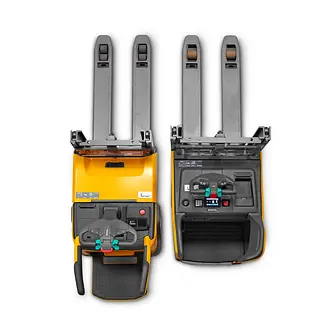

Two versions (compact and super compact), both at least as spacious as the preceding model and with high steel side protection.

Ergonomics

Ergonomically shaped, softly padded operator position provides support in every driving situation.
Ideal as body support when standing sideways or when changing direction frequently in forward-facing position.
Optional: cushioned platform with suspension adjustable to the individual operator.

Flexible triplex mast

Significant expansion of the possible applications.
In the HGV: compact overall height and free lift for prompt loading and unloading.
In the warehouse environment: stacking up to the third racking level with lift heights up to 3,760 mm.

Workplace

Variety of storage options, front and in the side walls.
Optional: USB interface and options bracket for attaching extra equipment such as shrink wrap holder, A4 writing board or terminals.
Optional touch mode to facilitate order picking tasks.

Other

Decentralised charging at any socket with optional built-in charger.
Can also be used in the cold store down to -28°C.

Dimensions

Smaller dimensions allow for more efficient use of space.
High manoeuvrability for precise control in front of and in the HGV or in confined warehouse environments.
Great agility for faster work processes and increased productivity.

Lithium-ion technology

Zero maintenance and extremely short charging times.
Easily accessible comfort charging interface for frequent booster charging.

Driving on ramps

Sturdy frame and sprung drive unit withstand even the toughest applications.
Optimised weight distribution and intelligent 5-wheel chassis ensure optimum traction and perfect handling on every ramp.

Performance

Powerful acceleration and top speeds of up to 14 km/h for dynamic goods throughput.
Fast and precise lifting and lowering of loads.
Efficient double-decker transport: handling of two pallets simultaneously (2 x 1,000 kg).

Operation

Short training times and easy working thanks to intuitive smartPILOT steering with automatic centring and height adjustment as standard.
All truck functions can be operated with one hand.
