1.0-ton Scissor Lift Hand Pallet Jack

AMX 10/ 10e

Features

Efficient Handling

Smooth controls equally suitable for both left-handed and right-handed operators.
Particularly sensitive and controlled lowering of goods with the special lowering valve.
The standard fast lift (up to 120 kg) ensures that Euro pallets can be lifted clear of the floor with just 3 pump strokes.
The maximum lift height is achieved with only 26 pump strokes.
Optimised hydraulic system for effortless pumping.
Drawbar pull required is reduced by the bushes on the wheels.

Built-in charger (AMX 10e)

Safe and robust

Varying work heights up to 800 mm for a healthy posture during work.
Optional equipment: Lateral support wheels for movement of goods while lifted.
Closed fork tips in welded construction are torsion free and extremely robust.
Pump unit with integrated tank and lowering valve for sensitive lowering through manual lever.
Pressure limiting valve to protect hydraulics from overloading.

Maximum stability and durability

Individual equipment

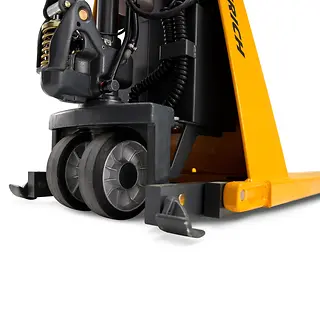

Different materials for wheels and rolls available, depending on ground condition and application scenario.
Lifting and lowering: Manual or electro-hydraulic with 0.5 kW lift motor.

AMX 10 manual hydraulic

Load can be brought to the optimum work height with just a few movements of the tiller.
Beyond a certain fork height, the scissor lift hand pallet truck is secured by additional support legs.

AMX 10 electronic hydraulic

Scissor lift hand pallet trucks are recommended for frequently changing work heights.

The work height can be easily adjusted at the touch of a button.
