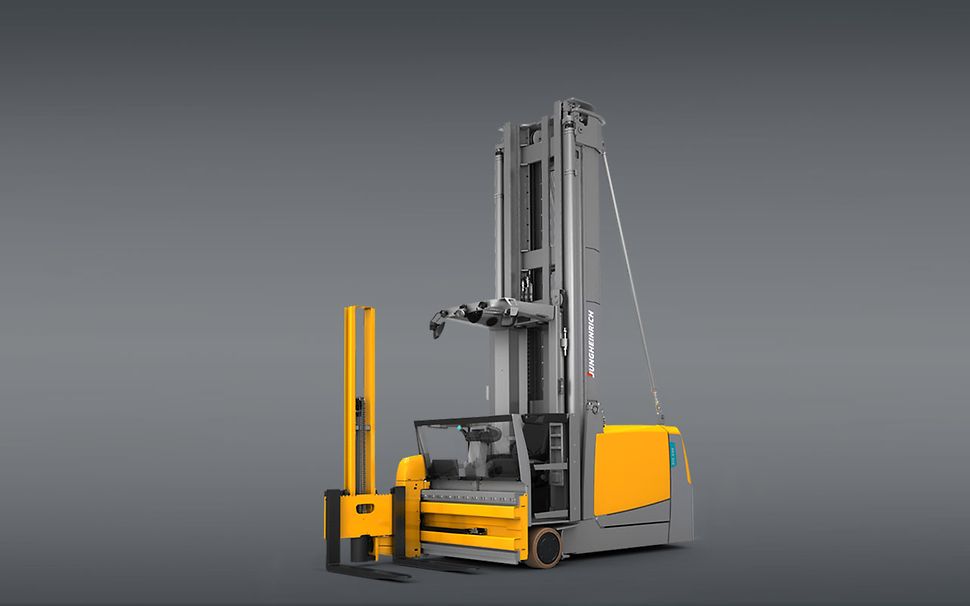

Electric front seat/tri-lateral stacker 1.1 - 1.36t

3000 - 9000 mm
1100 - 1360 kg

Innovative truck concept with front seat and side mast.
High compression due to combined use in narrow and wide aisles.
Unrestricted view of forks, load and truck.
Regenerative braking and lowering.
A wide range of equipment options and assistance systems.

EFX 411/ 414

Our versatile and agile EFX Series 4 tri-lateral stackers are perfect for combined use in narrow and wide-aisle warehouses. The modular truck concept with front seat configuration and side-mounted mast as well as optimum visibility of forks, load and travel route facilitates efficient work according to the man-down principle. Powerful 48-V 3-phase AC technology guarantees maximum throughput with low consumption, while standard and optional equipment options such as RFID floor control or warehouseNAVIGATION ensure a high degree of precision when driving and positioning. In addition to various travel assistance systems, the EFX 411 / 414 also impress with their intuitive operating concept. A large display, the adjustable console, spacious shelves and ergonomic controls offer first-class working comfort.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

Increased energy efficiency

High torque and maximum throughput with low energy consumption.
Doubled energy recovery through regenerative braking and lowering.
Extended operating times of up to 2 shifts with one battery charge.
Longer battery life and shorter charging times.

Ease of commissioning and low maintenance

Quick and reliable commissioning through teach-in process.
Maintenance interval 1,000 operating hours.
Electronics with wear-free sensor technology.

Available with lithium-ion technology

High availability thanks to very short charging times.
Maintenance-free operation and up to 3 times greater service life in comparison with lead-acid batteries.
Ideally suited for multi-shift operation thanks to booster and rapid charging capability.
No battery exchange required.

Optionally available RFID floor control

Truck control with transponder technology.
Distance measurement for precise identification of all warehouse areas.
High degree of flexibility in terms of switching functions.
Speed profiles adapted to the floor topology.

Optionally integrated personal protection system (PPS)

Factory integration in the safety computer.
Project planning, commissioning and maintenance by Jungheinrich.

Optional warehouseNAVIGATION for narrow aisles

Warehouse navigation for maximum precision during storing and removal.
Direct transfer of the destination position by the truck computer.
Automatic vertical and horizontal positioning.
RFID location detection prevents trucks travelling to incorrect destinations.
Effective prevention of damage to racks and goods.
Productivity increase by up to 25%.

Additionally available assistance systems

positionCONTROL in wide aisles: for efficient stacking at defined heights.
Fork carrier camera for best view at high lift heights.

Different mast variants

Triplex telescopic mast for high lift heights.
Duplex mast ZT for medium lift heights.
Triplex mast DZ for medium lift heights with free lift.

Advanced ergonomics

Comfortable, generously dimensioned entry.
Sprung, vibration-cushioned comfort seat.
Infinitely adjustable control panel.
Softkey membrane key with numeric keypad.
Limit position / transition cushioning for all hydraulic functions.

Extensive additional equipment

Control and CAN bus system.
Mechanical rail guidance.
Wire guidance for precise navigation without mechanical loading of components.
Synchronised swivelling.
Modular system for lift and travel cut-outs as well as speed reductions.
Radio data terminal with mechanical and electrical interfaces for material flow management systems.
Jungheinrich FMS fleet management system for efficient and cross-site control of the truck fleet.
Safety belt with monitoring.









Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EFX 411	1 100 kg	7 000 mm	9 km/h	3 134 mm	48 V
EFX 414	1 360 kg	9 000 mm	9 km/h	3 134 mm	48 V
