Reach truck 1.6t

4550 - 10700 mm
1400 - 1600 kg

The ETV 2i for optimised energy consumption.
Compact truck for best utilisation of space in the warehouse.
Lithium-ion battery with rapid and booster charging capability.
Ergonomic operator position with optimum visibility of support arms and load.
Wide range of options for increasing safety in the working environment.

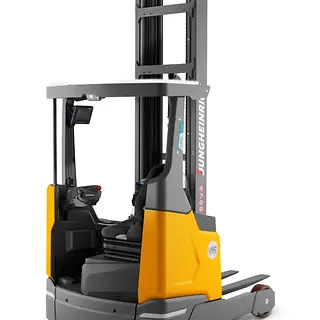

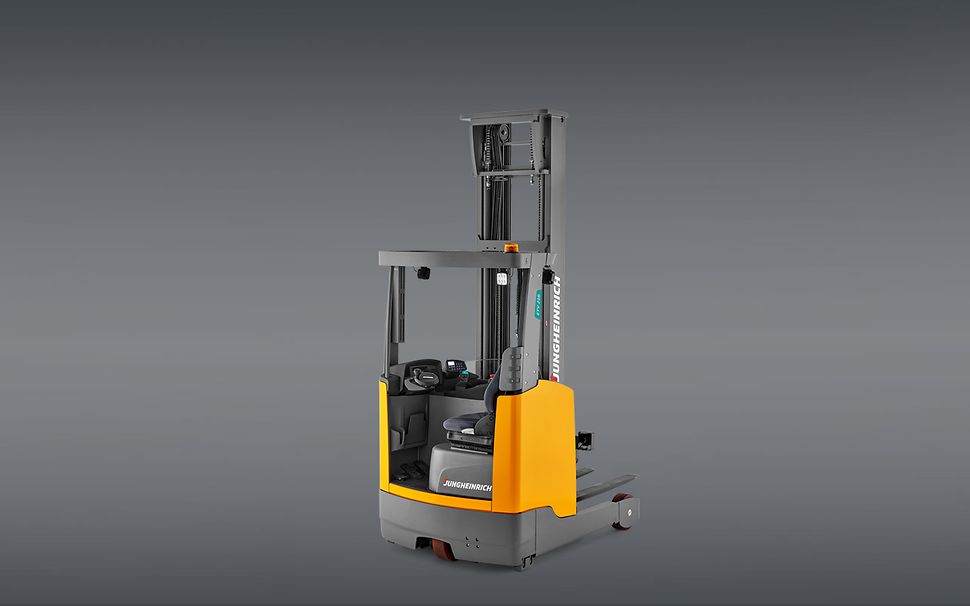

ETV 214i - 216i

Our agile and innovative ETV 214i / 216i reach trucks are the ideal helpers for efficient storing and removal at heights of up to 10.7 m or for the provision of pallets for order picking. Thanks to their innovative design, they not only impress with improved safety and ergonomics, but also with maximum ride comfort. The powerful lithium-ion battery is extremely compact and facilitates flexible use thanks to its rapid and booster charging capability. A generously designed workplace with low entry step, plenty of space for the operator and optimum all-round visibility enables healthy working. Smart assistance systems and a wide range of additional options such as a panorama glass roof, positioning laser or the integrated SmartStripe LED light strip ensure maximum protection in the warehouse.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Features

Integrated lithium-ion technology

High availability thanks to extremely short charging times.
Comfort charging for rapid and flexible charging.
Cost savings due to longer service life and zero maintenance.
Neither charging rooms nor ventilation required as there is no build-up of gas.
Optional built-in charger.

High-performance mast

For maximum safety and utilisation of warehouse capacity.
High residual capacities with narrower dimensions.
Mast available with mast and fork tilt.

Enhanced safety

Better view of the support arms and load due to the removal of the battery tray for the lead-acid battery.
Slim roof struts enable all-round visibility.
Standard drive wheel cover.
Low entry step for safe entry and exit.
Solid shoulder protection.
Optional warning when exiting incorrectly.
Also available as an option: raised windscreen, panorama glass roof, integrated SmartStripe light strip, brake light, direction indicators.

Wide range of assistance systems and options

Positioning laser for easier stacking of the load.
Permanent monitoring of the limit capacity via operationCONTROL.
Fork camera with monitor.

4-inch full-colour display

Travel direction and wheel position indicator.
Battery status with residual time display.
Three selectable travel programs.
Operating hours and time of day.
Optional display of lift height and load weight on screen.

Ergonomic workplace

More space for the operator.
Steering wheel and armrest can be adjusted separately with minimum effort.
Low entry step for safe entry and exit.
Attachment of brackets for additional equipment such as radio data terminals or scanners.
Practical storage for stowing accessories.

soloPILOT control lever

Activating of all hydraulic functions as well as selection of travel direction and horn.
Controls configured in the field of vision with clearly assigned functions.
Travel direction switch, features intuitive direction change.
Precision operation due to sensitive control of all functions.
Optimum control of additional attachments, e.g. an optional fork positioner.
Optional multiPILOT control lever.


Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
ETV 214i	1 400 kg	10 700 mm	11 km/h	2 287 mm	51,2 V
ETV 216i	1 600 kg	10 700 mm	11 km/h	2 437 mm	51,2 V

Downloads

POWERLiNE-ETV-2i-Efficiency-2024-02_Factsheet_EN-AU_2025-01.pdf pdf (1,5 MB)

Technical data ETV 2i pdf (742,5 KB)

ETV 214i - 216i
