Reach truck 1.0 - 1.6t

4550 - 10700 mm
1000 - 1600 kg

Compact design for low aisle widths
High residual capacity for more throughput
180° and 360° steering for flexible manoeuvring
loweringPRO option for optimisation of the lowering speed
Tailor-made optional features for all applications

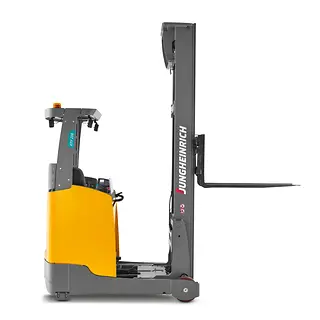

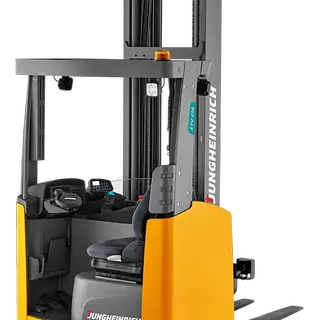

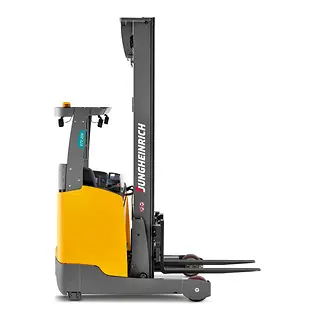

ETV/ ETM 210-216

Speed up your warehouse operations with our powerful and flexible Series 2 reach trucks: travelling at speeds of up to 14 km/h, our ETV trucks ensure impressive performance in live storage, pallet or drive-in racking, as well as in single-shift and multi-shift operations. The Series 2 ETM is your first choice for drive-in racking or block warehouses due to its narrower design. The enormous gain in space thanks to narrower aisle widths enables flexible handling, which is perfected by the spacious, ergonomic workplace and the intuitive, convenient handling via operator display. You can significantly benefit from higher throughput while reducing energy consumption, reduced mast sway during stacking and retrieval, and accelerated fork lowering with the loweringPRO option.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

High-performance mast

Maximum safety and effective utilisation of warehouse capacity up to great heights.
Triplex masts with lift heights up to 10,700 mm.
Excellent visibility of the load.
Compact design and small working aisle with ETV 210 / 212.
Low clearance heights with high lift heights.
High residual capacities even at extreme lift heights.
Optional, active mast vibration cushioning reduces mast sway during storage and removal.

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange required.
Neither charging rooms nor ventilation required as there is no build-up of gas.

loweringPRO

The loweringPRO option enables maximum performance by doubling the lowering speed to up to 1.2 m/s.
The smooth mast transfer guarantees the lifting and lowering of goods with maximum safety (optional).

Optional assistance systems

operationCONTROL continuously measures the load weight and compares it with the residual capacity of the truck. An optical warning on the operator display as well as an acoustic warning are triggered when approaching the limit value.
positionCONTROL with SNAP function enables simple and fast stacking without additional pressing of buttons.
liftNAVIGATION transfers stacking orders automatically from the warehouse management system. This prevents stacking errors.
Fork camera and ergonomically adjustable motor enable especially safe and efficient stacking and retrieval.

EasyAccess

Keyless access system via softkey, PIN code or optional transponder card.

4-Inch full-colour display

Display of direction of travel and wheel position.
Battery status, with display of time remaining until the next charge required.
Three adjustable travel programs for individual adjustment to any requirements.
Operating hours and time of day.
Lift height (optional).
Load weight (optional).

Option packages for different operating conditions

Efficiency for long operating times with one battery.
drivePLUS for frequent travel over long distances.
liftPLUS for greater lift speed and increased productivity.
drive&liftPLUS for maximum productivity with optimum energy consumption.

Ergonomic workstation

Generous space, even for tall operators.
Electric steering, available in 180° or 360° mode.
When driving in a straight line, the steering wheel spinner knob is always at the optimum ergonomic position.
Optional panorama overhead guard provides a clear view of the raised load.
Fabric seat with adjustment options for seating position, backrest and body weight.
Important controls within easy reach.
Automotive layout of the pedals.
Plenty of storage options.
Holder for, e.g., radio data terminal, writing board or video monitor.


Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
ETV 210	1 000 kg	7 400 mm	11 km/h	2 346 mm	48 V
ETV 212	1 200 kg	7 400 mm	11 km/h	2 346 mm	48 V
ETM 214	1 400 kg	9 020 mm	14 km/h	2 418 mm	48 V
ETV 214	1 400 kg	10 700 mm	14 km/h	2 348 mm	48 V
ETM 216	1 600 kg	9 020 mm	14 km/h	2 418 mm	48 V
ETV 216	1 600 kg	10 700 mm	14 km/h	2 408 mm	48 V
